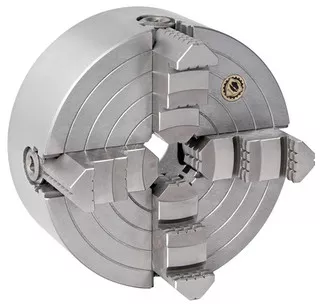

Bison 4-Jaw Independent Lathe Chuck
8″ Size, L00 Spindle – 7-854-0841
- Four-jaw standard duty independent Lathe Chucks with solid reversible jaws, spheroidal graphite iron body.
- The jaws are made of high quality carbon steel and hardened. Thrust bearings and operating screws are case hardened steel.
- These chucks feature jaws that are individually adjustable, allow firm gripping of odd shaped work and the jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force.
Features:
- Jaws are individually adjustable, allowing firm gripping of odd shaped work
- (4) Jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force
- Chuck bodies are semi-steel
- Jaws are made of high quality carbon steel and hardened
- Thrust bearings and operating screws are made of case hardened steel
- Made in Poland
Specifications:
| BRAND | BISON |
| MODEL | 7-854-0841 |
| CHUCK SIZE | 8″ |
| SPINDLE | L00 |
| MOUNT | Rear |
| THRU HOLE | 1.97″ |
| TOOL MATERIAL | Semi-Steel Body |
| SELF CENTERING | No |
| TYPE | Independent Lathe Chuck |
| NO. OF JAWS | 4 |
| SERIES | L |
| SIZE | 8″ |
| WEIGHT | 34 lbs. |
| COUNTRY OF ORIGIN | POLAND |
Click to view the Series 7-854 Dimensional Data
