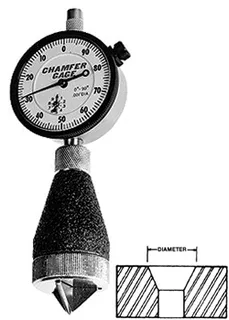

Precise Chamfer Gage, Range 2″- 3″ With 0º – 90º Angle
Mfg. 3090
- Instantly measures top diameter of tapered holes
- Measure the top (major) diameter of a chamfer, countersink, center drill, or tapered hole
- Press the spring loaded, conically ground, precision 3-blade Gaging Plunger into the chamfer or countersink and instantly read the dial in .001″ or .01mm/.022mm diameter increments
- The Chamfer Gage is a direct reading gage. No setting, Master (Standard) or look-up chart is required.
- Angular ranges: 0º – 90º
Guaranteed Accuracy:
within ± .001″ in 0º – 90º models
within ± .002″ in 90º – 127º models
See all Precise Chamfer Gages
